LED Strobe PRO 8x 20W COB LED DMX, tehokas, kirkkaus ja välähdystiheys portaattomasti säädettävissä, DMX-ohjaus tai ääniohjaus sisäänrakennetulla mikrofonilla jonka herkkyys säädetävissä, stand alone master/slave toiminnolla, LED-toimintanäyttö ohjauspaneelilla, mitat 110 x 345 x 180mm, paino 2,5kg

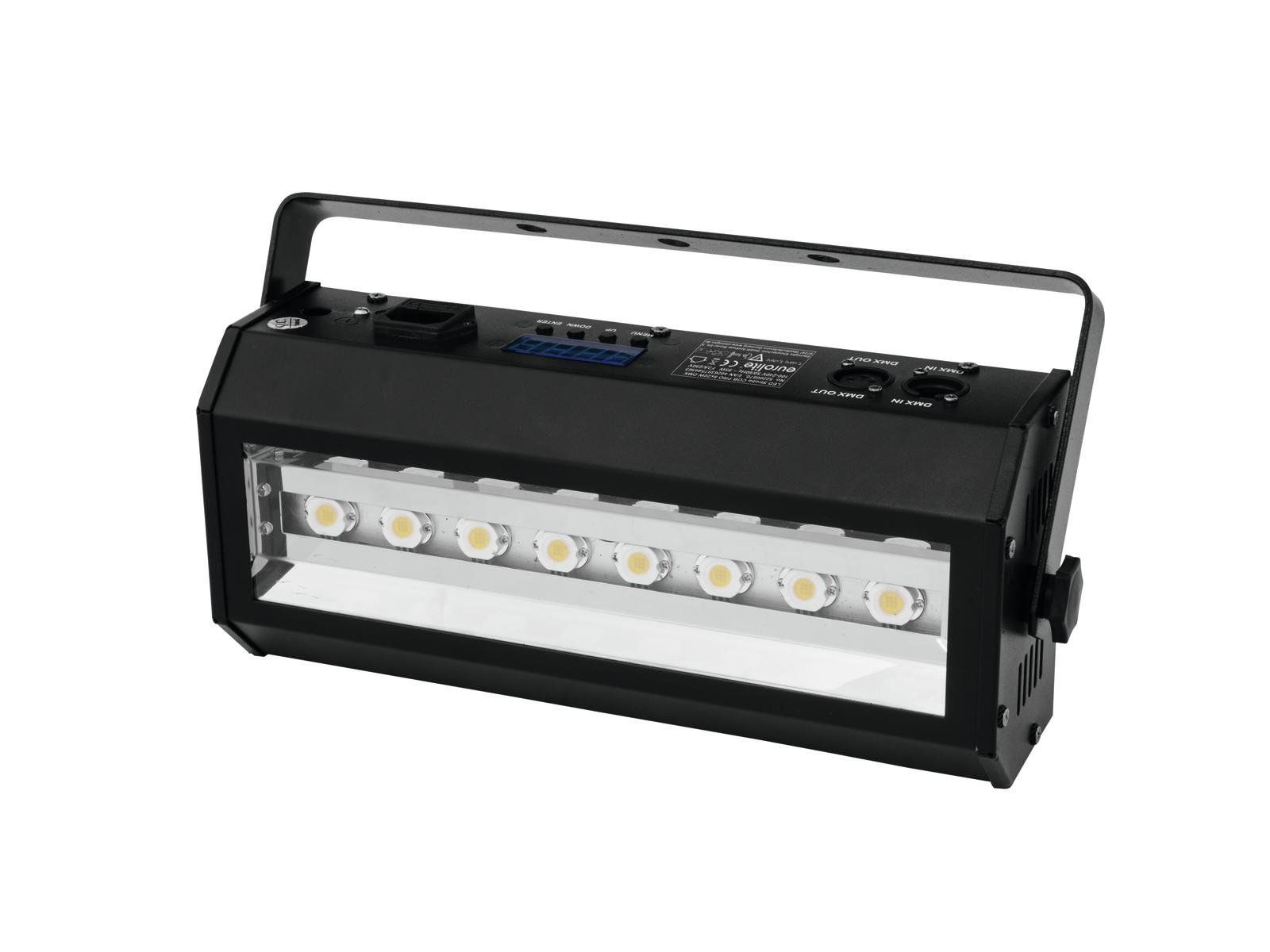

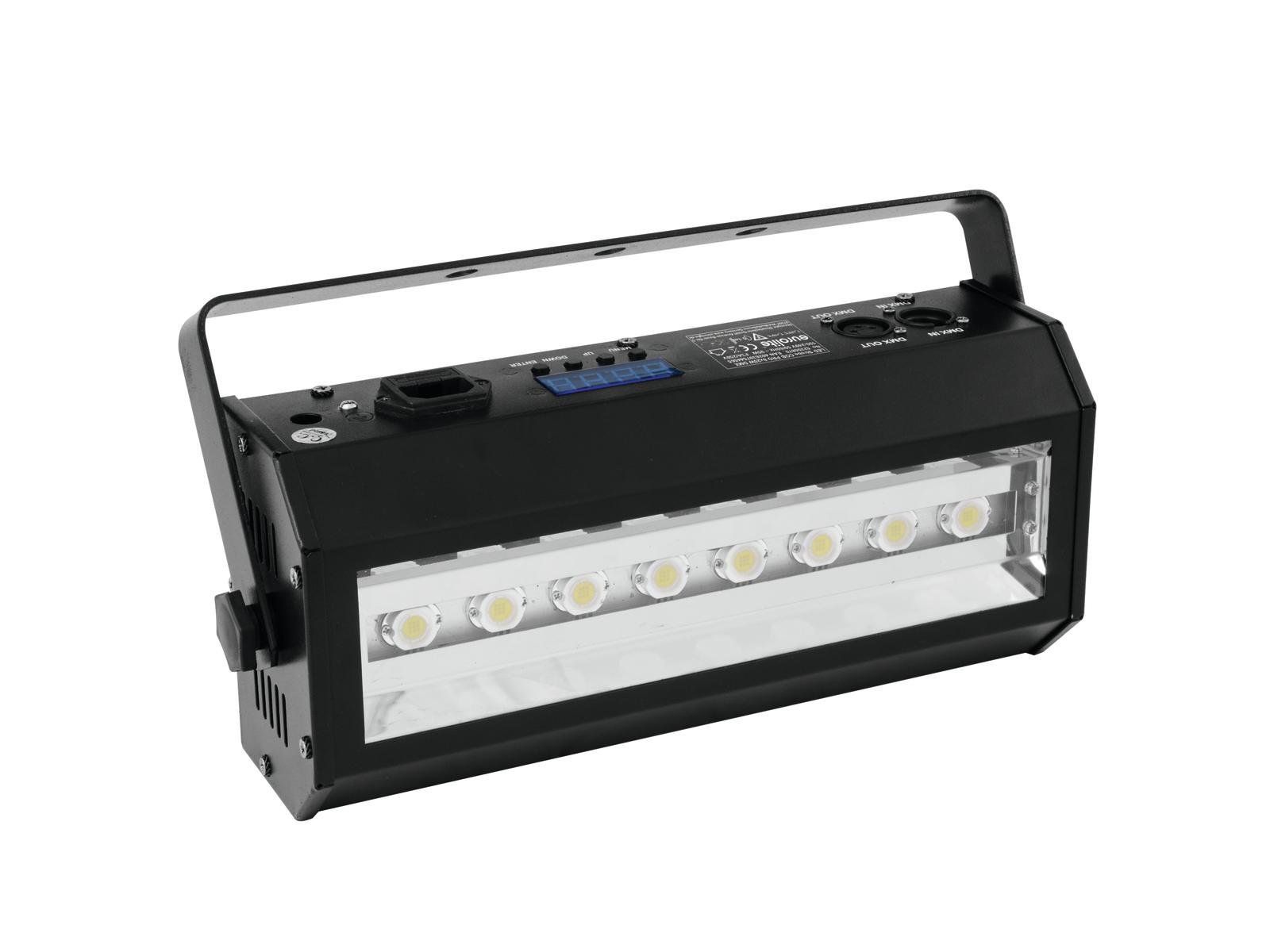

This LED strobe is equipped with 8 x 20-watt COB LEDs and combines strobe, chase and blinder effects. It lets you create both dynamic stage shows and the more low-key effects in between with a single fixture.
You can choose from three different operation modes: master-slave, stand-alone and DMX mode (5 DMX channels). The integrated microphone makes for great light effects to the rhythm of the music.

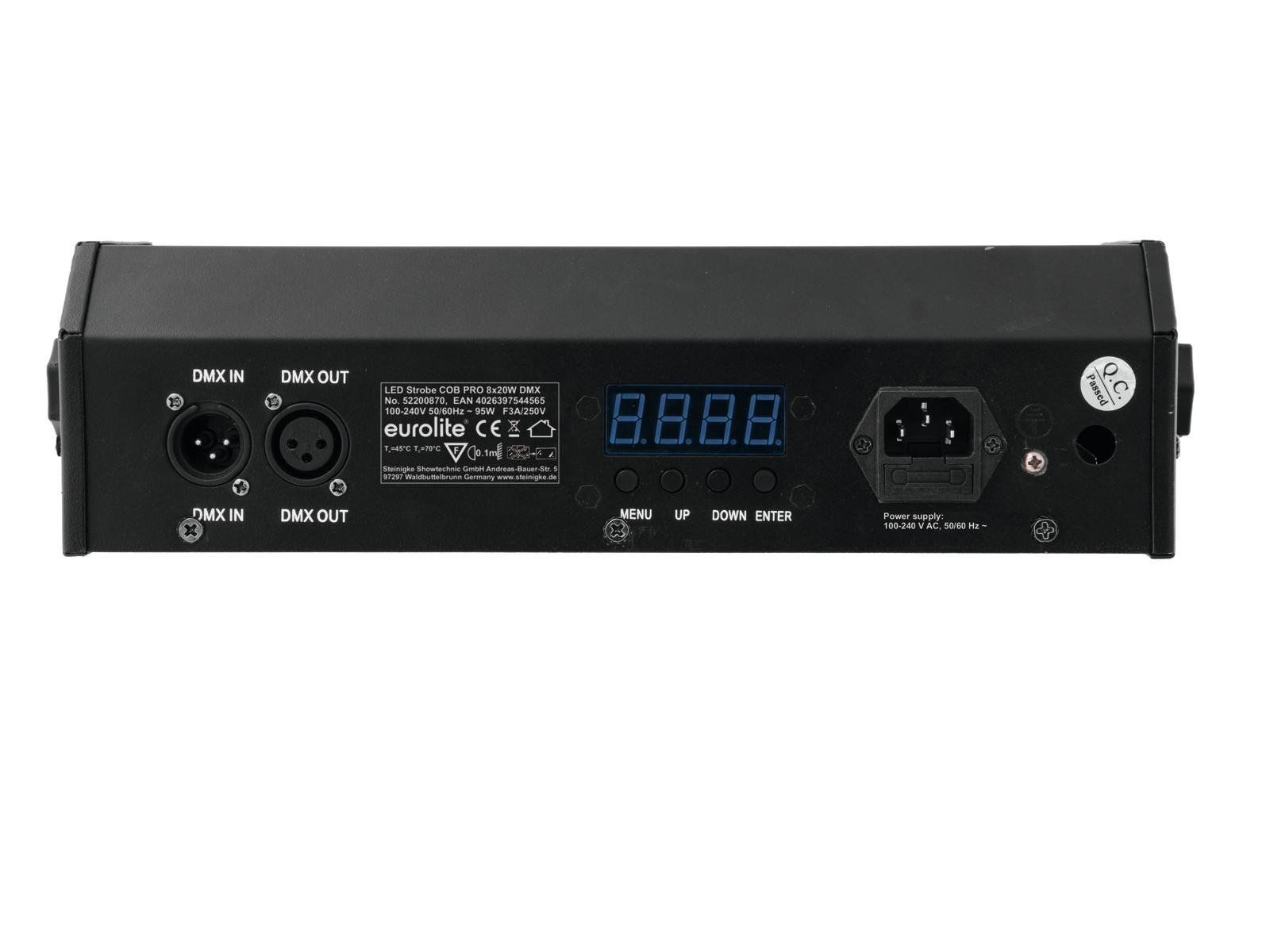

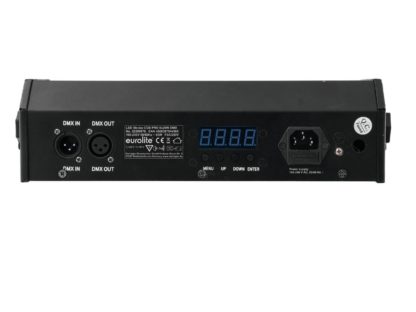

The fixture has 3-pin DMX connectors as well as an IEC input to connect it to the mains.
FEATURES
LED strobe with 8 x 20 W COB LED and adjustable flash freuquency
- Operable in stand-alone mode with Master/Slave function or DMX interface
- Brightness and flash-rate steplessly adjustable
- Comfortable addressing and setting via control board with LED display and four operating buttons
- Switch-mode power supply for operation between 100 and 240 Volts
- Elaborate reflector system

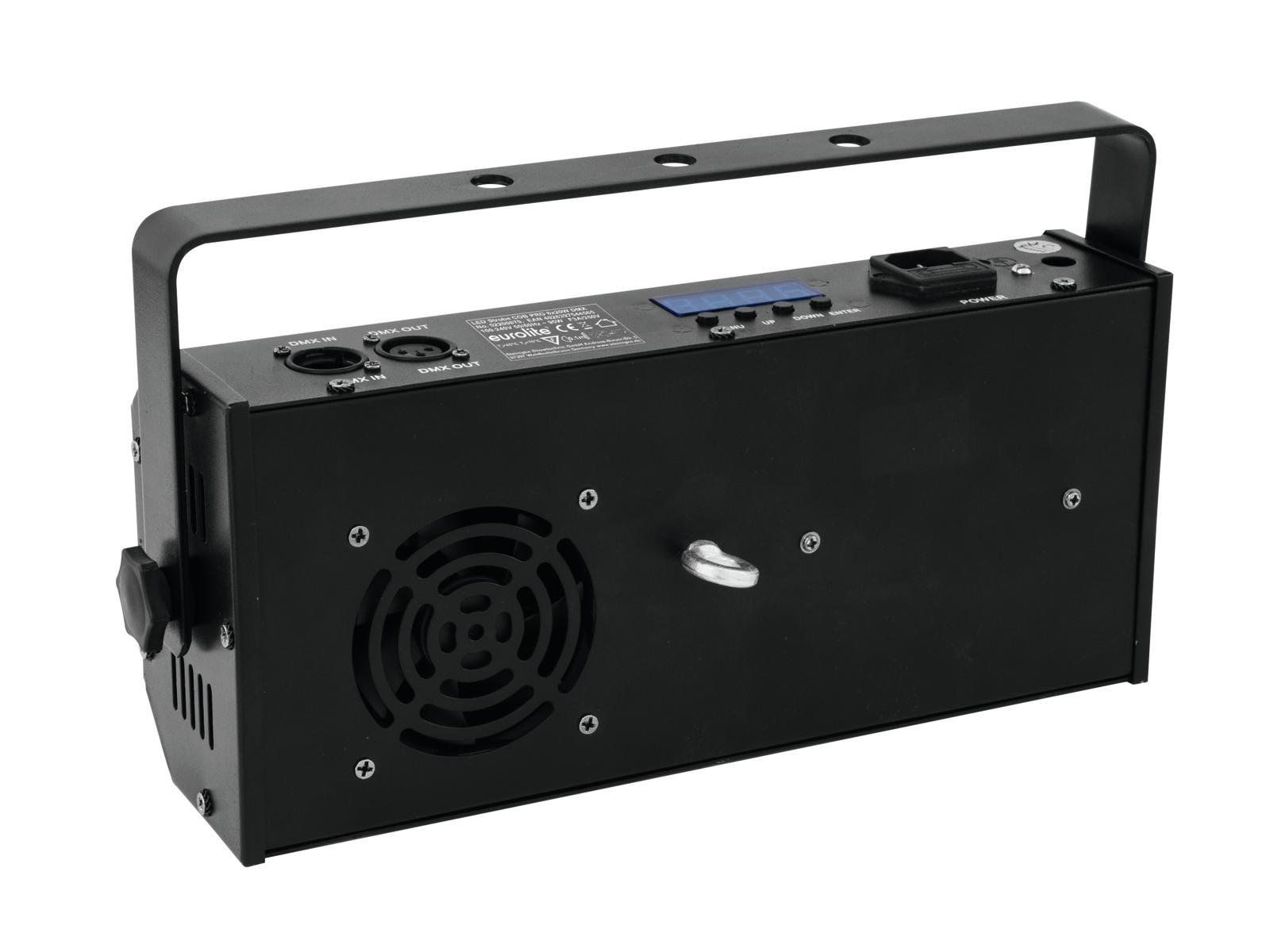

- Compact housing with mounting bracket and fixation screws
- Ready for connection via included IEC power cord with safety power plug

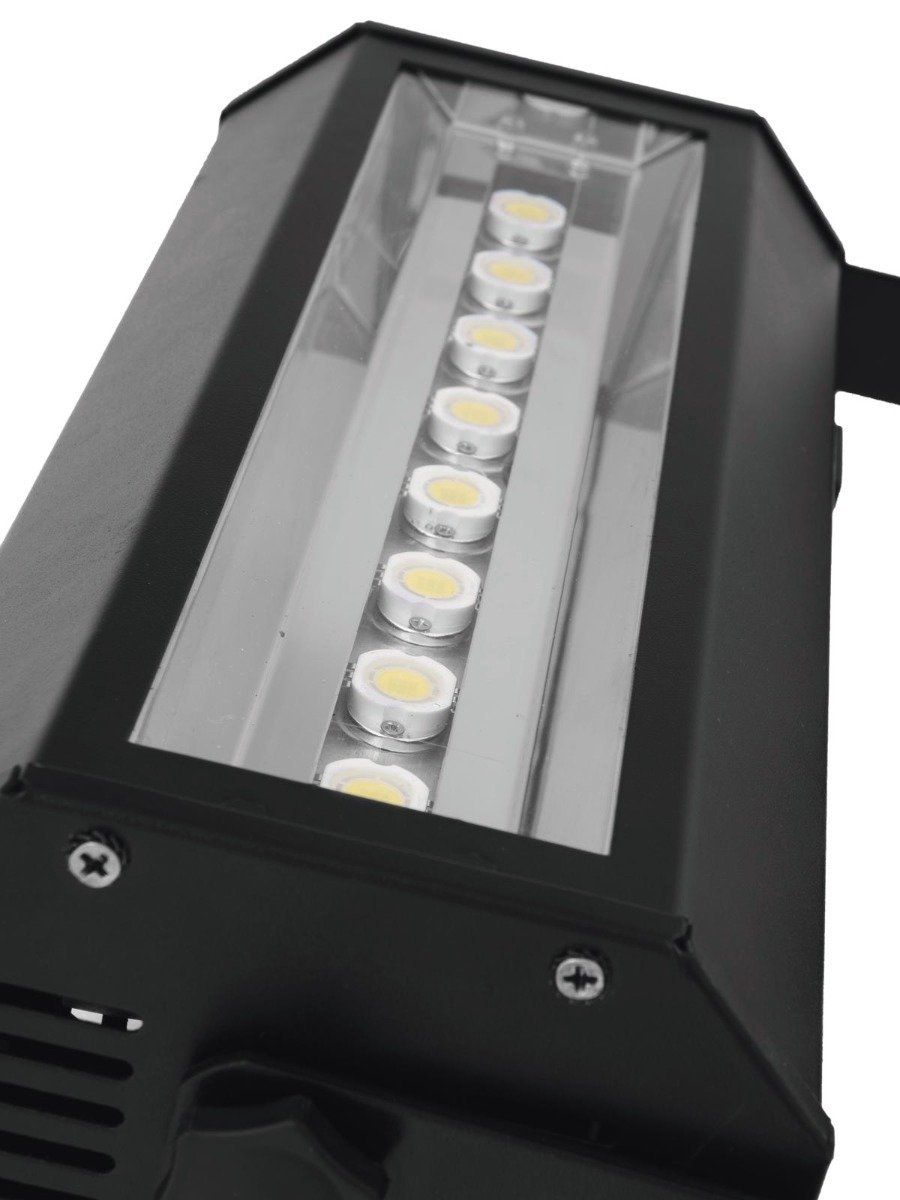

- LED: 8 x COB (chip-on-board) 20 W CW
- Can be operated in 5 CH mode
- The device is cooled by passive cooling by convection
- Controling by Stand-alone; Sound to light via Microphone; DMX
- Effect: Strobe effect
TECHNICAL SPECIFICATIONS
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 95 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug included |
| Length of the cable: | 1.4 m |
| Fuse: | 5 x 20 mm, F 3 A Fuse replaceable |
| LED: | 8 x COB (chip-on-board) 20 W CW |
| DMX channels: | 5 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Passive cooling by convection |
| Control: | Stand-alone Sound to light via Microphone DMX |
| Display type: | 4 digits 7-segment LED display |
| Width: | 34.5 cm |
| Height: | 18 cm |
| Depth: | 11 cm |
| Weight: | 2.35 kg |
| Legal specifications | |
| Ecodesign regulation: | Yes |
| Special product: | Not designed for household room illumination |
| Purpose: | Show effect lighting |
User manual
