FEATURE LIST

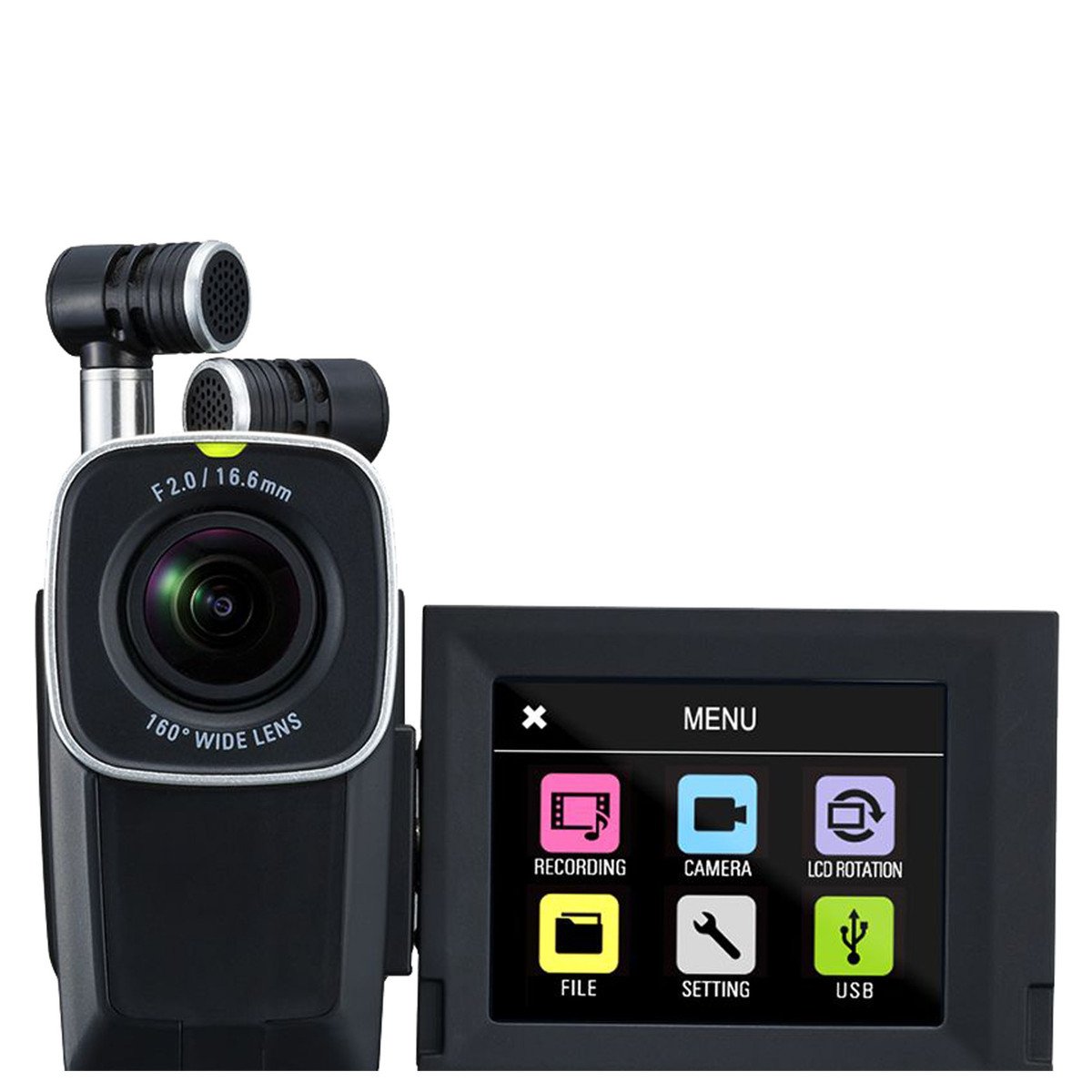

- High-quality 160° wide-angle lens (F2.0/16.6 mm)
- 10 “Scene” options for use in different lighting environments, plus five steps of digital zoom
- Records directly to SDXC cards up to 128 GB for extended recording times
- Easy one-button recording
- Full-color rotating touchscreen LCD
- Support for five HD video modes, up to 2304 x 1296 pixels (3M HD), as well as two WVGA modes
- Video bitrates up to 24 Mbps for extended image quality and frame rates of up to 60 fps (at 720p) for capturing fast-action video
- Self-timer function to delay video recording by 3, 5, or 10 seconds
- HDMI video output for connection to HDTVs, selectable between NTSC and PAL
- Records video and audio in MOV format
- Can be used as standalone audio recorder, with data saved in AAC and WAV formats, up to 24-bit / 96 kHz
- Built-in stereo microphones can be configured for A/B or X/Y, capable of handling sound levels up to 140 dB SPL
- Analog-style level control with onscreen level metering and 2-color status LCD on lens
- 3 Auto Gain presets for automatic control over audio input level
- Stereo input for use with external devices plus support for plug-in power
- Headphone / line-level output and built-in speaker for fast audio monitoring
- Supplied windscreen and low-cut filter for the elimination of low-frequency noise and rumble
- USB interface for live streaming and data transfer
- Compatible with USTREAM Producer, Flash Live Media Encoder, Skype, and other popular streaming applications
- Webcam and USB mic function (with low-latency direct monitoring) when used with computers and iPads (Apple Camera Connection Kit required for use with iPad)
- Includes rechargeable Li-ion battery (chargeable via USB or optional AC adapter) with battery life of more than 3 hours
- Built-in standard tripod mount and included tripod-to-3-prong adapter for compatibility with all action camera mounts
SPECIFICATIONS
| RECORDING MEDIA: | SD/SDHC/SDXC cards (Class 10 or higher, up to 128 GB) |
| IMAGE SENSOR: | 1/3-inch 3-megapixel CMOS sensor |
| LENS: | Fixed focus (36 cm – ∞), F2.0, Focal distance approx. 16.6 mm (35 mm equivalent),160˚ FOV |
| VIDEO FORMAT: | MPEG-4 AVC/H.264 (MOV) |
| VIDEO RESOLUTIONS: | 3M HD (2304×1296) / 30 fps / 24 Mbps, HD1080p / 30 fps / 24 Mbps,HD1080p / 30 fps / 16 Mbps,HD720p / 60 fps / 15 Mbps,HD720p / 30 fps / 8 Mbps,WVGA 60 fps / 8 Mbps,WVGA 30 fps / 5 Mbps |
| AUDIO FORMATS: | WAV (16-/24-bit quantization, 44.1/48/96 kHz sampling frequency)AAC (64–320 kbps bit rate, 48 kHz sampling frequency) |
| AUDIO FUNCTIONS: | Lo-Cut filter, Auto Gain |
| IMAGE FUNCTIONS: | Digital zoom (×0.75/×0.85/×1.00/×1.30/×1.50),Scene selection (Auto / Concert Lighting / Night / Concert-Low Light / Dance Club / Jazz Club / Concert Hall / Rehearsal-Studio / Garage / Outdoor / Sunset) |
| SELF-TIMER: | (Off/3sec/5sec/10sec) |
| DISPLAY: | 2.0″ full-color touchscreen LCD |
INPUT: MIC
| TYPE: | 120° A/B and 120° X/Y stereo |
| MAXIMUM SOUND PRESSURE INPUT: | 140 dB SPL |
| INPUT GAIN: | -30 to +44 dB |
INPUT: EXTERNAL INPUT
| INPUT CONNECTOR: | Stereo mini jack |
| INPUT GAIN: | –∞ to +26 dB |
| INPUT IMPEDANCE: | 2 k Ω or more Supports plug-in power |
OUTPUTS
| OUTPUT CONNECTOR: | Combined line/headphones stereo mini jack |
| HDMI CONNECTOR: | Micro Type D |
| BUILT-IN SPEAKER: | 400 mW 8 Ω mono speaker |
USB: OPERATION AS MASS STORAGE
| CLASS: | USB 2.0 High Speed |
USB: OPERATION AS AUDIO INTERFACE
| CLASS: | USB 2.0 Full Speed |
| SPECIFICATIONS: | 44.1 kHz sampling rate, 16-bit |
USB: OPERATION AS WEBCAM
| SPECIFICATIONS: | WVGA/720p video size, 48 kHz / 16-bit audio |
| Note: Audio interface and mass storage operation with iPad is supported. Note: USB bus power supported | |
GENERAL
| POWER SUPPLY: | Lithium-ion battery: DC 4.2V maximum voltage, DC 3.7V nominal voltage, 1,050mAh capacity |
| AC ADAPTER: | ZOOM AD-17, sold separately: DC 5V/1A |
| RECHARGING TIMES: | Using USB: about 3 hours Using ZOOM AD-17: about 2 hours |
| BATTERY OPERATION TIME: | About 3 hours or more (when recording 720p/30 fps video with LCD closed) |
| EXTERNAL DIMENSIONS: | Main unit (mic stored): 119 (length) × 51 (width) × 62 (height) mmMain unit (mic extended):119 (length) × 39 (width) × 86 (height) mm |
| WEIGHT: | 6.0 oz / 178.6 grams with battery 5.5 oz / 155.9 grams without battery |
