Look and Sound Your Best
in Video Meetings and Presentations

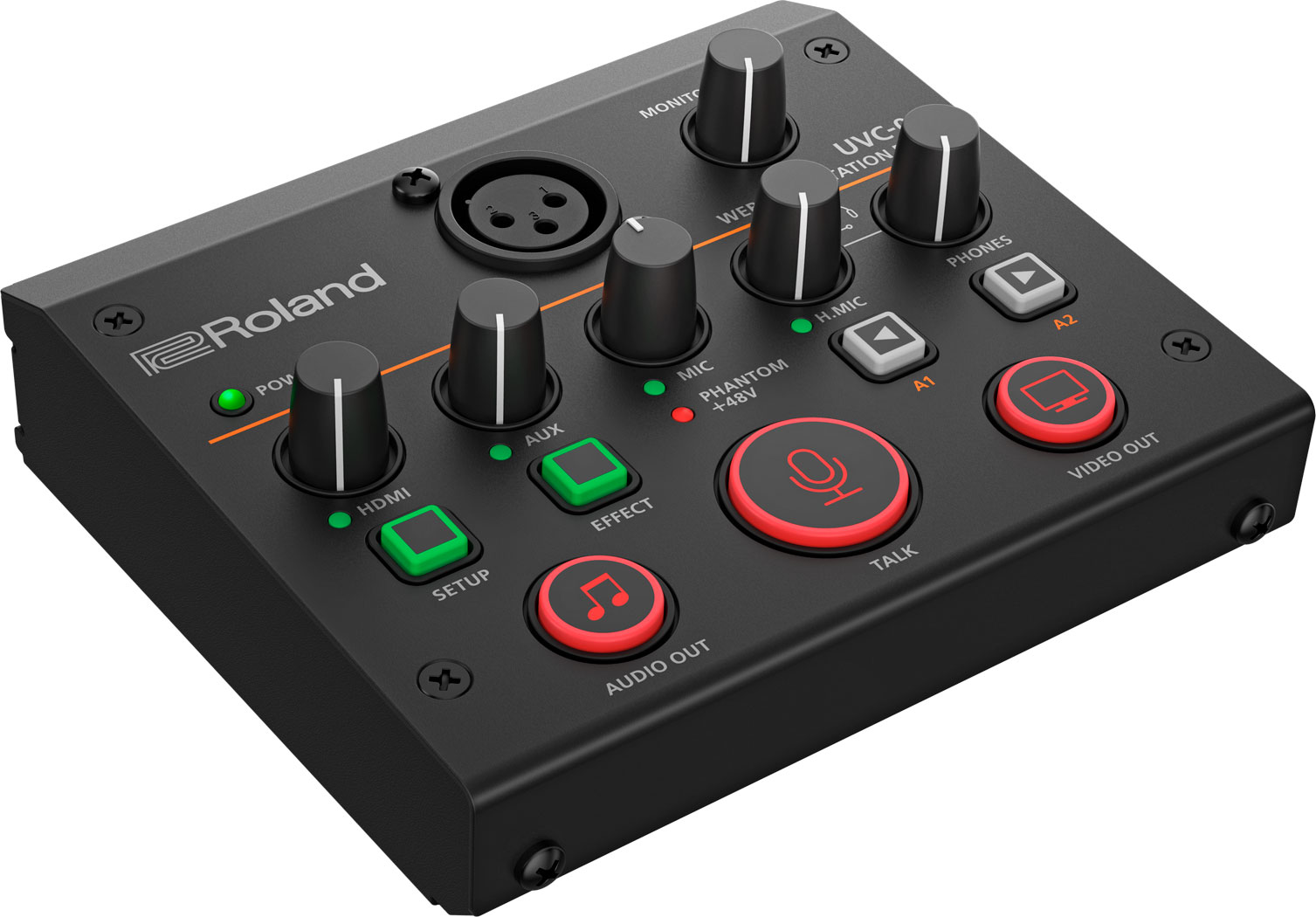

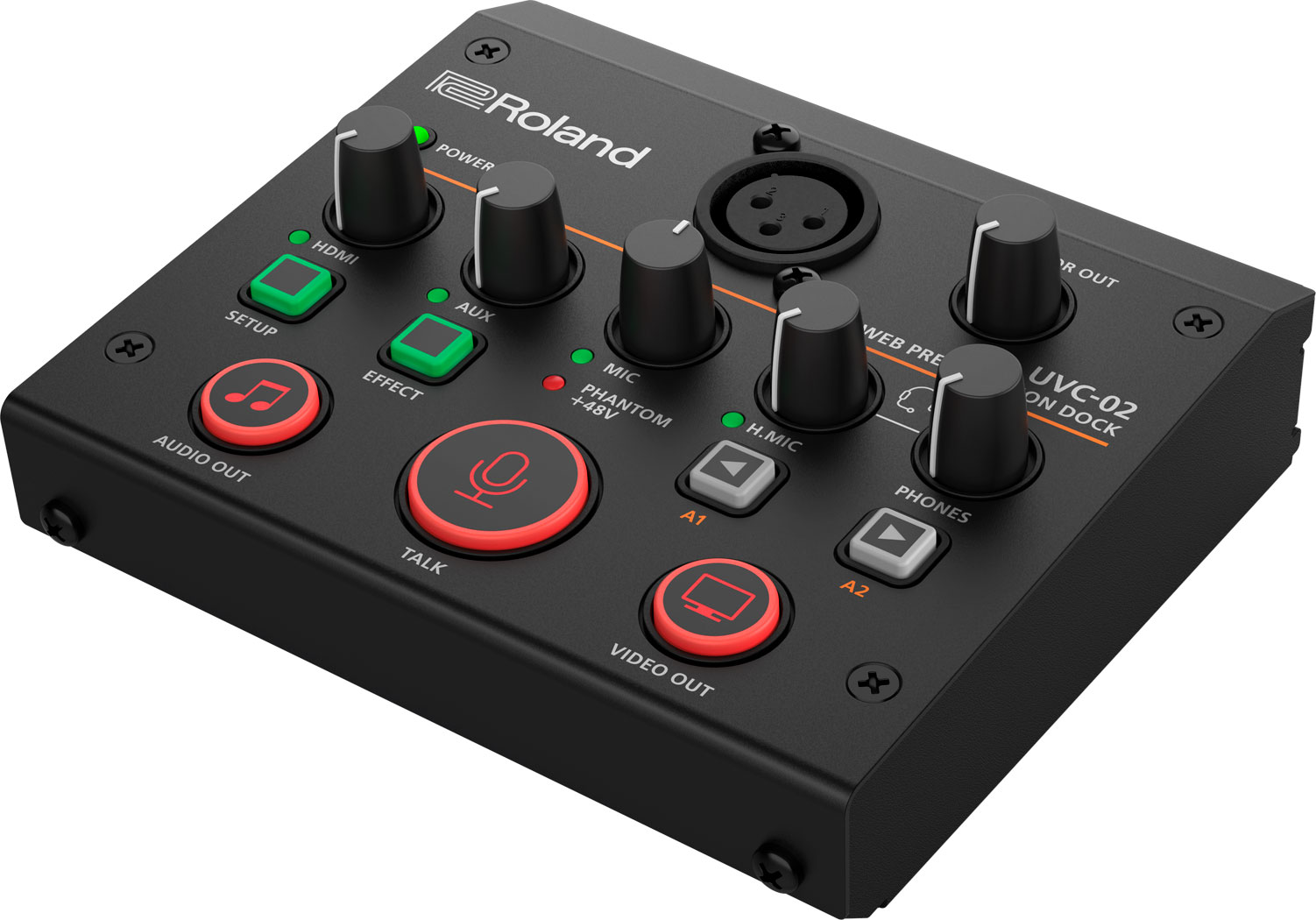

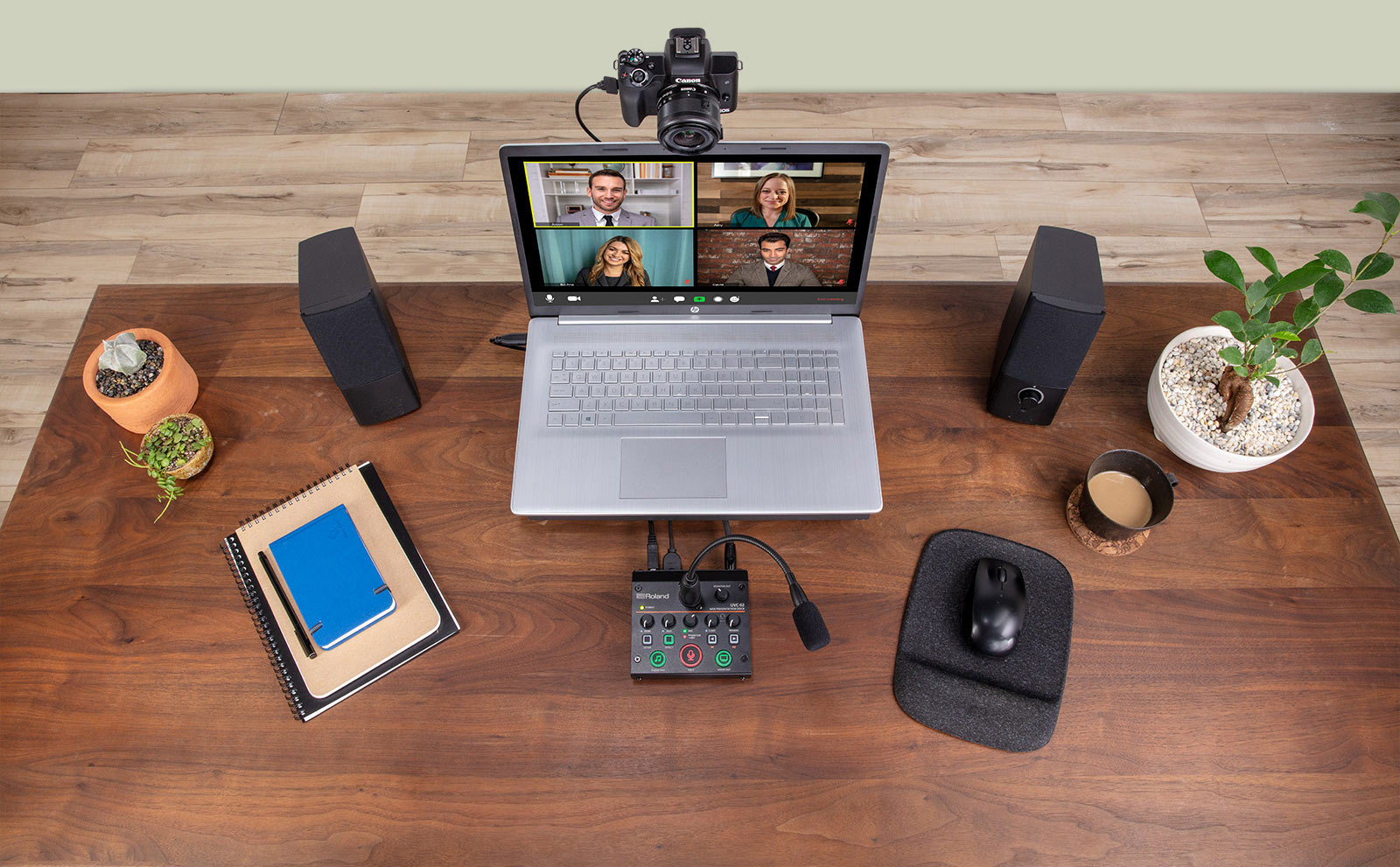

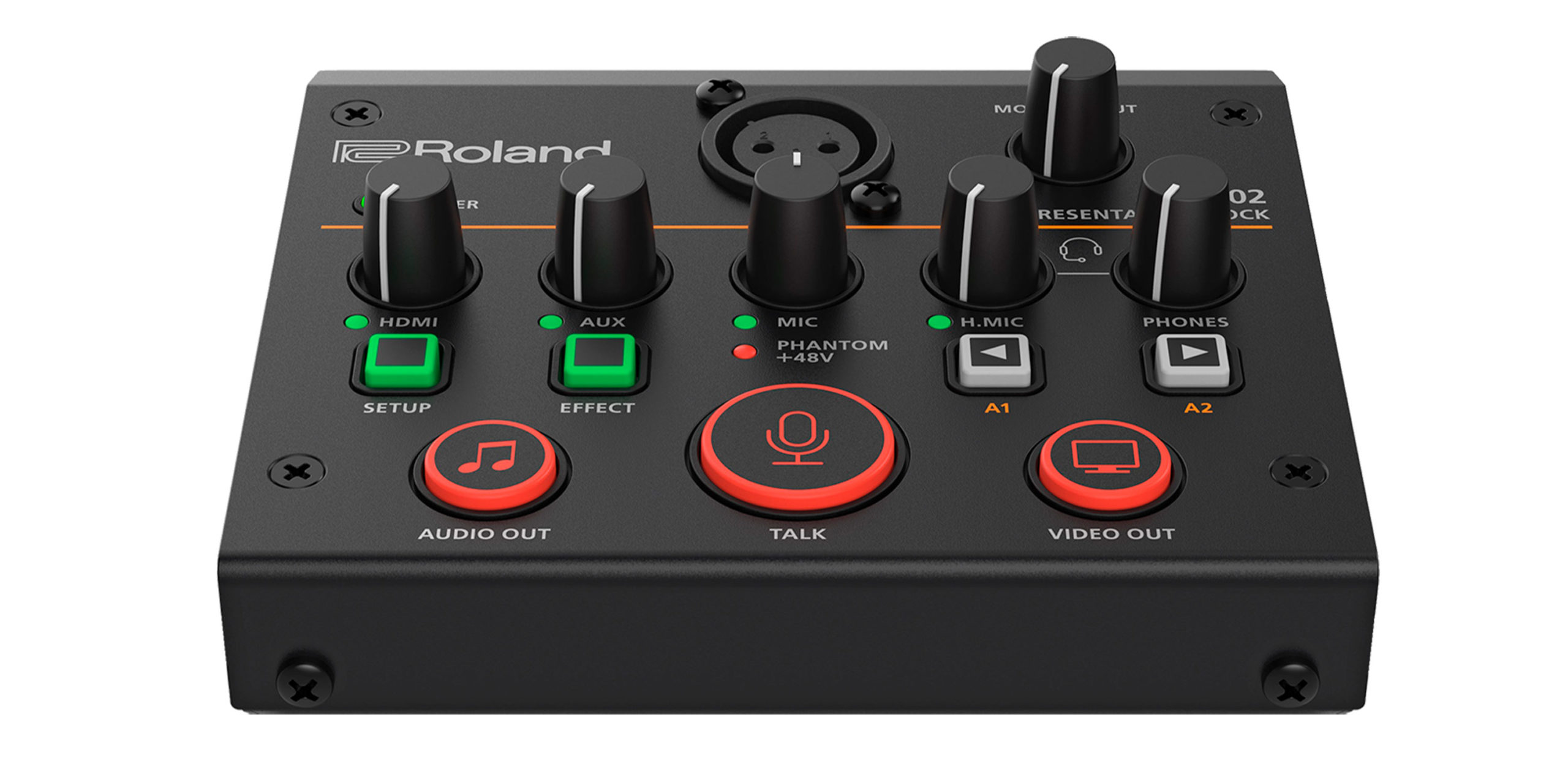

Video streaming for business and pleasure has become a regular part of life. But you’ll never look and sound your best with the webcam and microphone in your average computer. The Roland UVC-02 Web Presentation Dock helps you bridge the gap, providing a simple and affordable way to level up your video presentations with higher quality audio/visual gear and more control.
- Convenient and affordable desktop docking station to upgrade your business streaming with pro-level audio and video
- Inputs for a DSLR or other high-quality camera, an XLR microphone, and stereo audio sources
- HDMI video input supports embedded sound and features automatic scaling for different video resolutions
- Studio-grade sound with Roland’s acclaimed digital audio technology
- Plug and play operation—automatically appears as a webcam and audio source in your favorite streaming software
- Enhance your streams with professional audio processing, sound effects, and the unique Voice Change effect

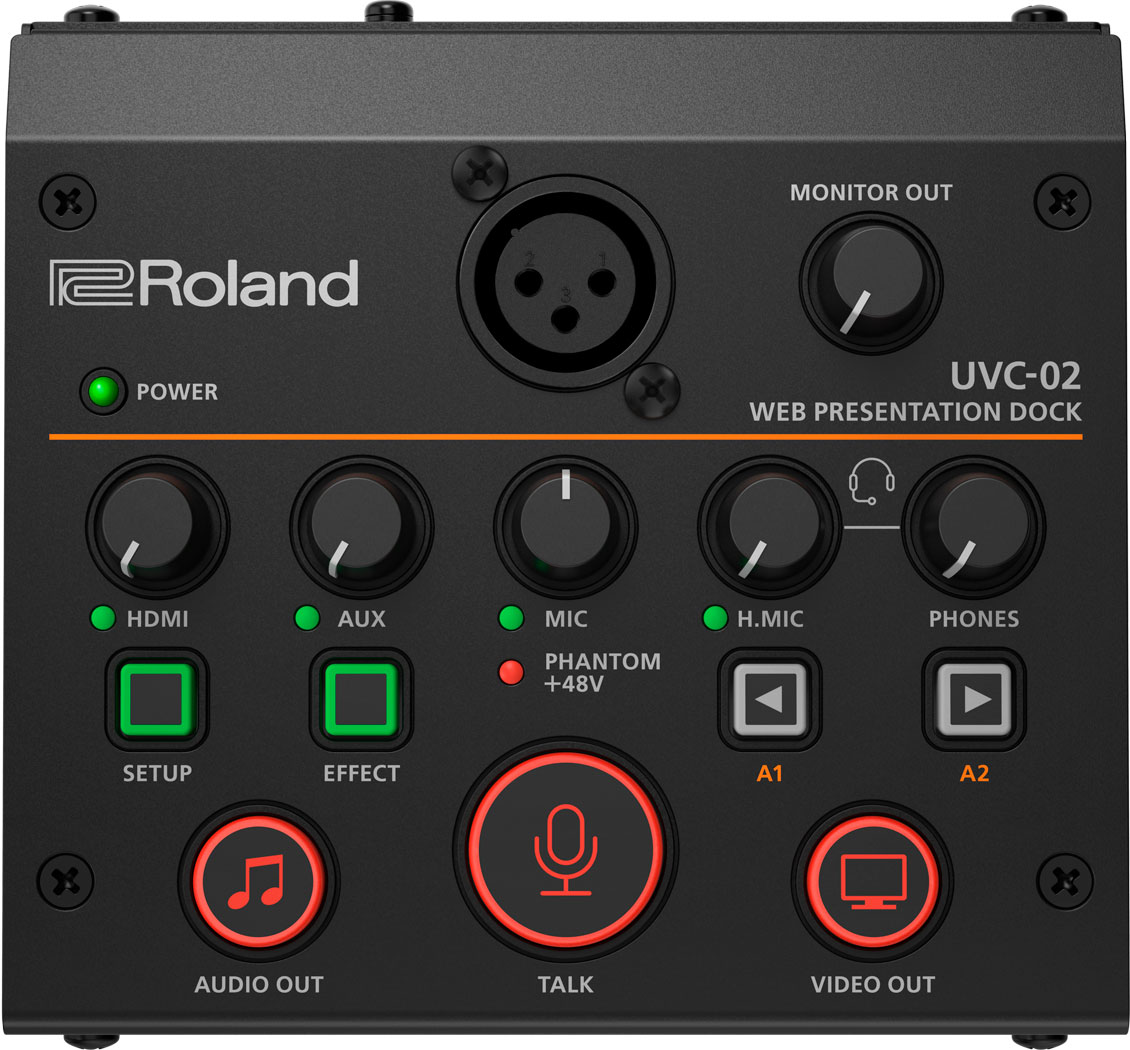

- Hands-on control of volume levels plus audio and video muting
- Assignable buttons for customizable control, configurable with free UVC-02 software for macOS and Windows
Plug In and Play
Once connected to your computer via USB, the UVC-02 is instantly recognized as a webcam and audio source, with no drivers or set up required. That means it’s ready to go with popular web meeting software such as Zoom, Microsoft Teams, Webex by Cisco, or any application that uses a webcam as an A/V source for streaming or recording.
- VIDEO
- Input Connector
- HDMI IN : HDMI type A
* HDCP not Supported
* Multi-format Supported - Input Formats
- 480/59.94p, 576/50p, 720/59.94p, 720/50p,
1080/29.97p, 1080/25p, 1080/59.94p, 1080/50p,
SVGA (800 x 600) 60 Hz / 75 Hz, XGA (1024 x 768) 6 0Hz / 75 Hz,
WXGA (1280 x 800)60 Hz / 75 Hz, HD (1280 x 720) 60 Hz / 75 Hz,
SXGA (1280 x 1024) 60 Hz / 75 Hz, FWXGA (1366 x 768) 60 Hz / 75 Hz,
SXGA+ (1400 x 1050) 60 Hz / 75 Hz, UXGA (1600 x 1200) 60 Hz,
FHD (1920 x 1080) 60 Hz
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11. - Output Connectors
- USB STREAM : USB 3.0 Type-B
- USB Video Output Format
- YUY2 (Uncompressed), Motion JPEG (Compressed)
- USB Video Output Resolution
- 1920 x 1080, 1280 x 720, 640 x 480
* Maximum frame rate is 60 fps. - AUDIO
- Audio Processing
- Sample Rate 48 kHz, 24 bits

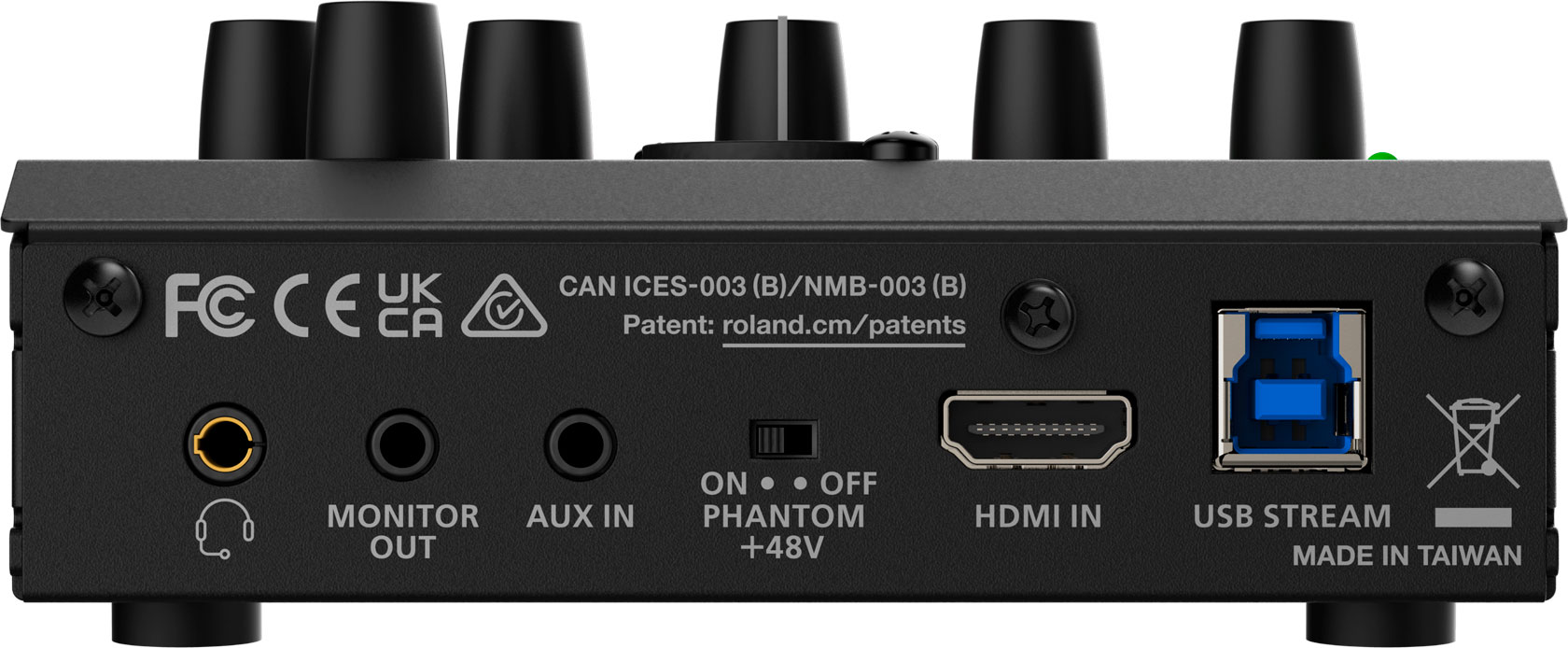

- Analog Connectors
- MIC : XLR type (Balanced, Phantom power DC 48V, 14 mA Max)
HEADSET : Stereo miniature phone type (CTIA, PLUG-IN power)
AUX IN : Stereo miniature phone type
MONITOR OUT : Stereo miniature phone type - Digital Connectors
- HDMI IN : HDMI Type A
USB STREAM : USB 3.0 Type-B - Nominal Input Level
- MIC IN : -54 to -14 dBu (Maximum input level : +4 dBu)
HEADSET : -20 dBu (Maximum input level : -2 dBu)
AUX IN : -10 dBu (Maximum input level : +8 dBu) - Nominal Output Level
- MONITOR OUT : -10 dBu
HEADSET : 9 mW + 9 mW (32 ohms load) - Input Impedance
- MIC IN : 5.8 k ohms
AUX IN : 10 k ohms
HEADSET : 1 k ohms - Output Impedance
- MONITOR OUT : 1 k ohms
HEADSET : 22 ohms - Digital Audio Format
- HDMI IN : Linear PCM, 48 kHz / 44.1 kHz, 24 / 20 / 16 bits, Stereo
USB STREAM : Linear PCM, 48 kHz, 16 bits, Stereo - Audio Effects
- Anti-Feedback, Echo Canceller, Ducker, Voice Changer, Reverb, Noise Suppressor, Equalizer, Expander, Compressor, Delay
- Audio File Player
- Number of tracks : 2
Data Formats : WAV (Linear PCM, 48 kHz, 16 bits, stereo / mono)
Maximum Time : 5 seconds / track - OTHERS
- Other Functions
- MIC Mute (TALK button)
Audio Mute (AUDIO OUT button)
Video Off (VIDEO OUT button)
Slideshow Control - Power Supply
- Supplied from the computer via USB
- Current Draw
- 900 mA (4.5 W)
- Operation Temperature
- +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit - Dimensions
- 124 (W) x 117 (D) x 52 (H) mm
4-15/16 (W) x 4-5/8 (D) x 2-1/16 (H) inches - Weight (excluding cables)
- 460 g
1 lb 0.3 oz - Accessories
- Leaflet ”Read Me First”
USB 3.0 Cable - * 0 dBu = 0.775 Vrms
