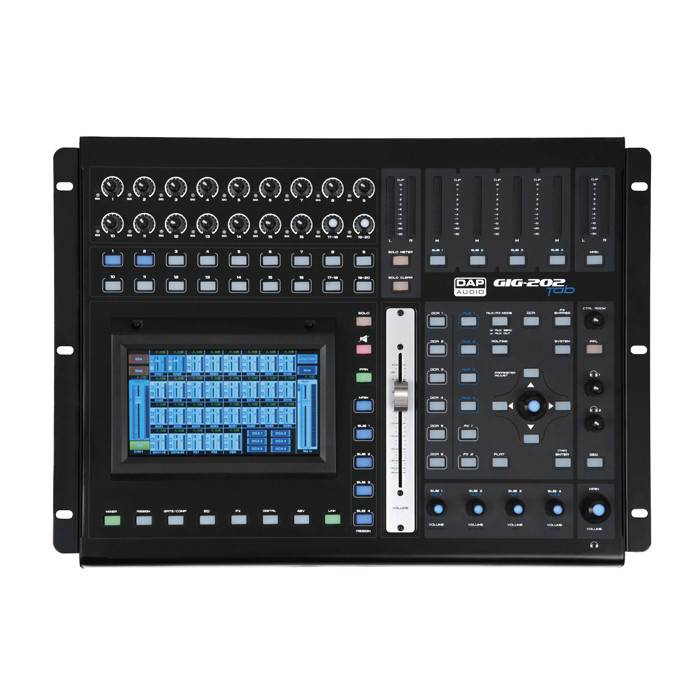

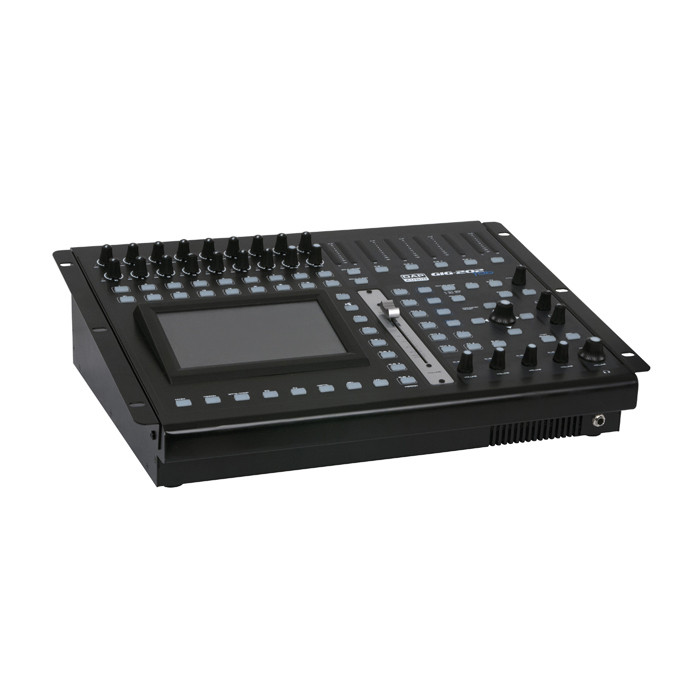

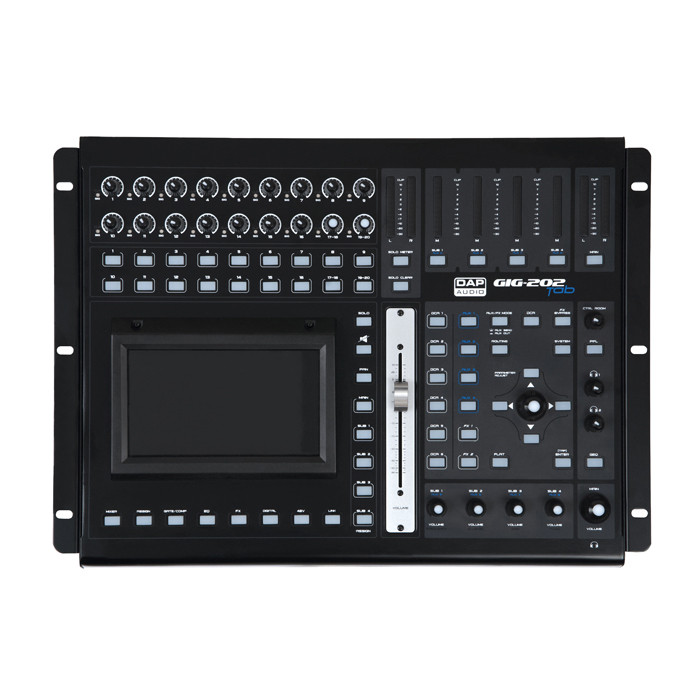

The GIG-202 TAB digital mixing console is the first fully digital mixing console in the GIG range from DAP-Audio. It is a compact digital mixing console that owns all the features of the bigger digital mixers available in the market. It has 16 XLR/TRS combo inputs and 4 TRS stereo inputs, all equipped with gate, compressor and a 4-band full parametric EQ on each input channel. The 12 analogue outputs feature a compressor and individual 31-band graphical EQ. Even though this compact digital mixer has a lot of features, DAP-Audio managed to design a user interface understandable for all users with or without any experience. To achieve this DAP-Audio added dedicated direct access buttons for all important features a sound engineer needs during his performance. This helps the user to go directly to the desired function without getting lost in complex menu structures. Direct control is essential in a live situation, therefore the 100 mm motorised fader is always automatically patched to the main parametre of your selected functionality. This also gives the console an ‘analogue’ feel to the digital environment. The GIG-202 TAB features an 7 inch Touchscreen, 8 inserts on the first inputs, 4 dedicated AUX outputs plus 4 switchable AUX/SUB outputs, 2 built-in FX engines, 6 user definable DCA’s and full internal 24-bit/48 KHz sampling rate make this the most complete and interesting digital mixing console in its market segment.
Features:

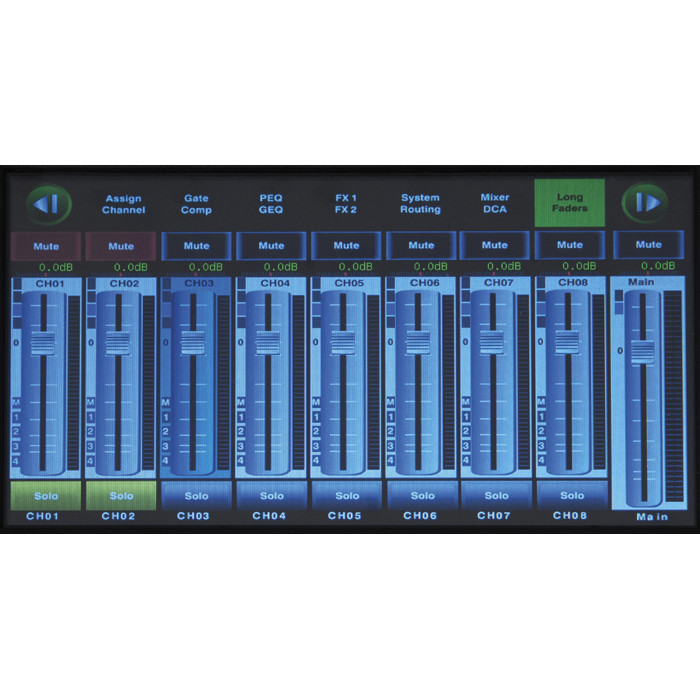

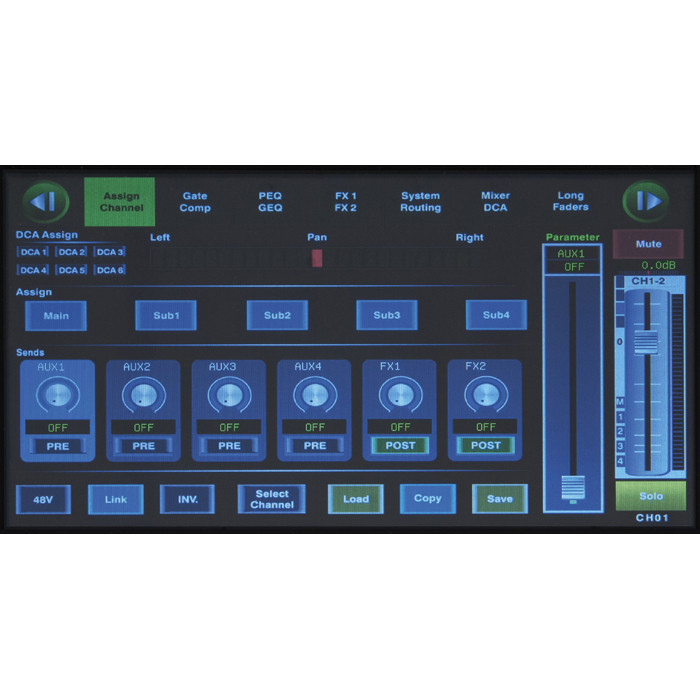

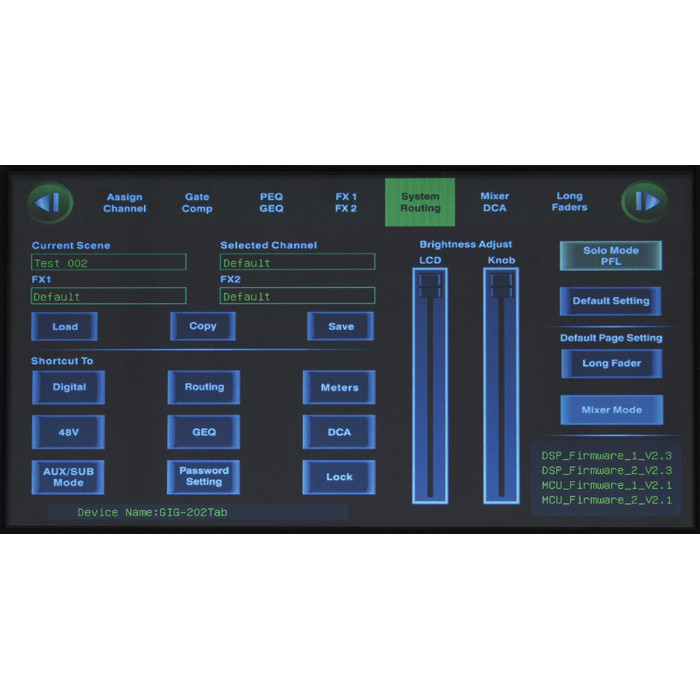

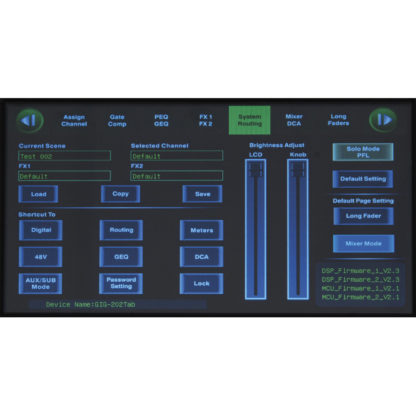

• 7” Full Colour LCD Touch Screen
• Easy to use software interface
• 8 direct access buttons for easy channel control

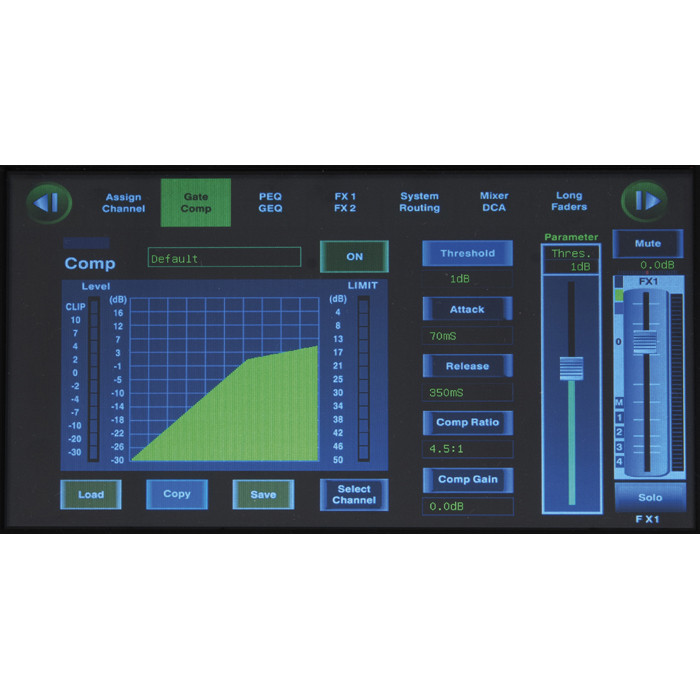

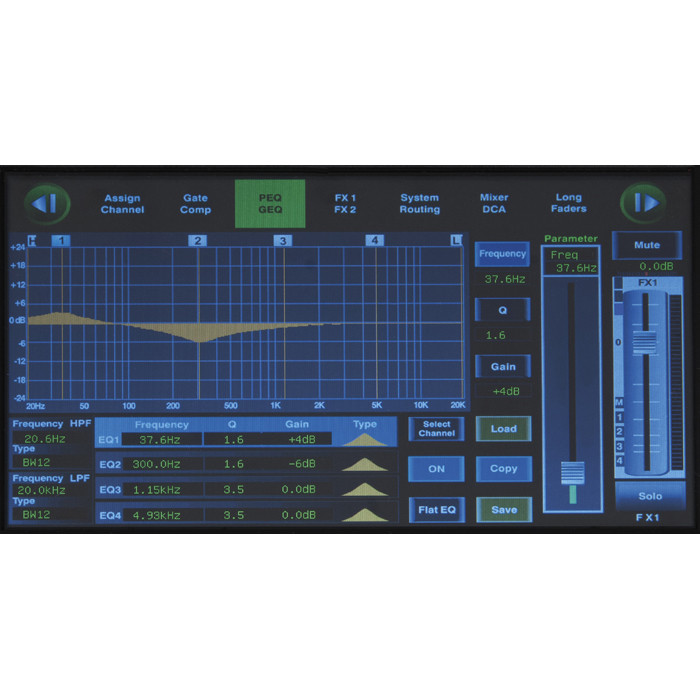

• Digital Gate/Compressor/4-band full parametric EQ on each input
• 31-band graphical EQ on each output

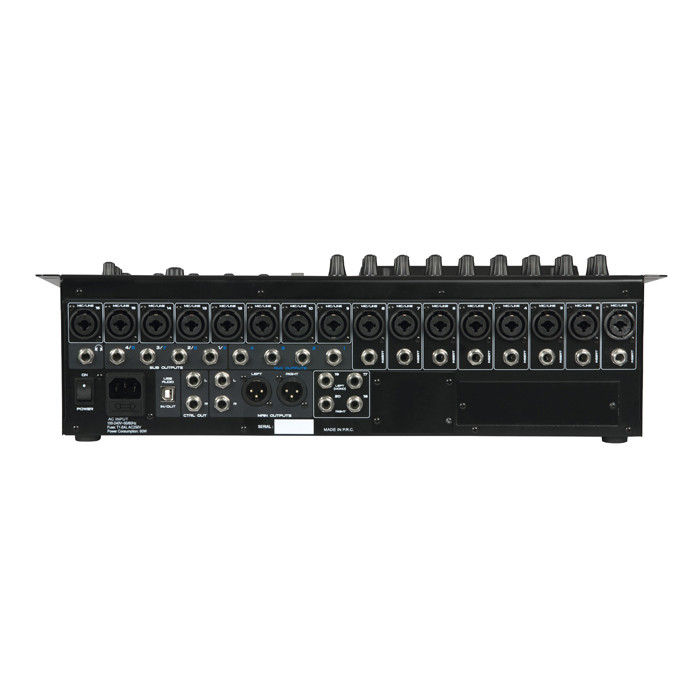

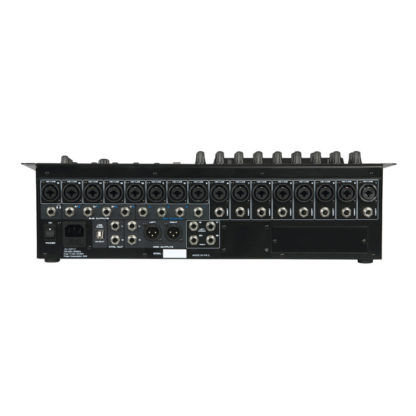

• 20 Analog inputs
• 8 inserts on first channels
• 10 Analog outputs
• 100 mm precision motorised Fader
• 4x AUX sends (pre/post switchable per channel)
• 4x switchable AUX/Subgroups

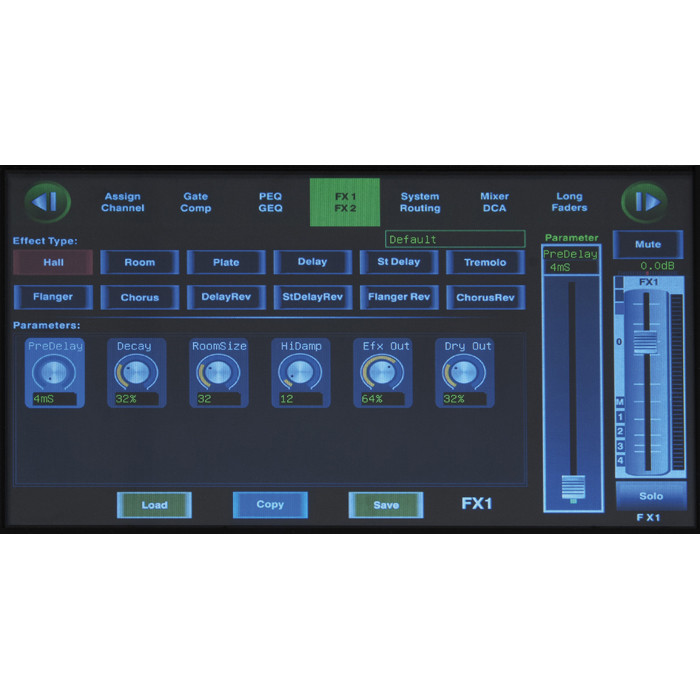

• 2x 24-bit FX engines
• Ultra-low noise discrete preamps with +48 V Phantom Power
• High-definition ADC’s (114 dB dynamic range)
• Integrated USB 2-track recording and playback

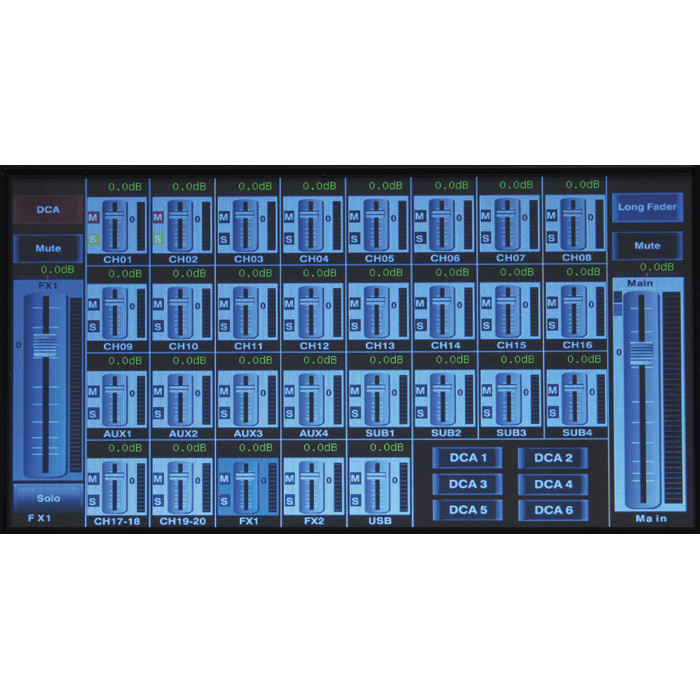

• 6x user definable DCA’s
• Full 24-bit/48 KHz sampling rate
• 2 separate volume controlled headphone outputs
