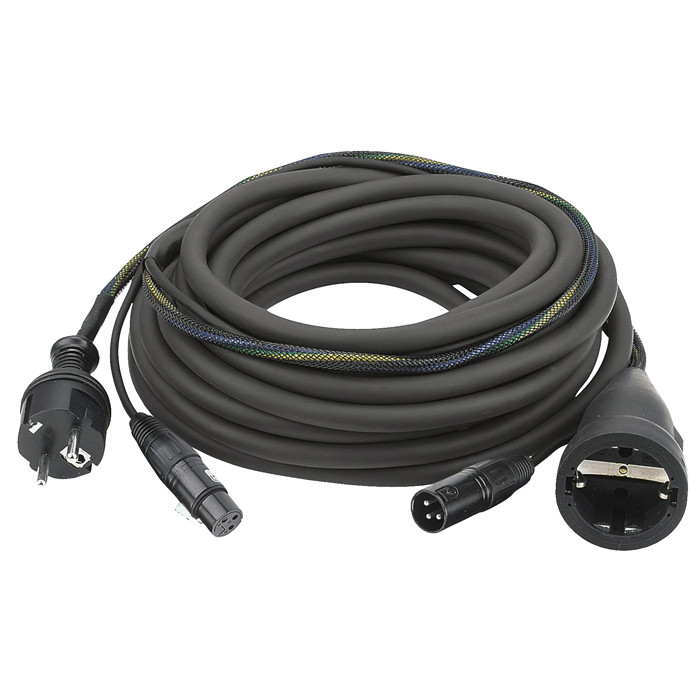

DAP-Audio FP09 – Schuko/XLR F – Schuko/XLR M
Now finally available as prefabcable: power and signal incorporated in one single cable! No more cable-”mess”, just one cable to your active speaker, mixingconsole etc. Currently there are three different models available, all designed for use with audio equipment. All 3 models have xlr-m to xlr-f signal connector and different types of current-connectors. Please note that with a little work these cables can also be used with lightequipment nevertheless you can expect to see more audio and lightsolutions coming up.
- Rated Current (A) 16 A
- Flashover Voltage 30 V
- Impedance 75 Ω
- Connector 1 Schuko Plug, XLR 3P
- Connector 2 Schuko Socket, XLR 3P
- Cable Length 20 m
- Pins 3
- Conductor Resistance 80 Ω/km
- Conductor Capacitance 60 pF/m
- Capacity Inner conduct. Shield/Inner conduct. 78 pF/m
- Outer Cable Diameter 11 mm
- Outer Isolation Type PVC
